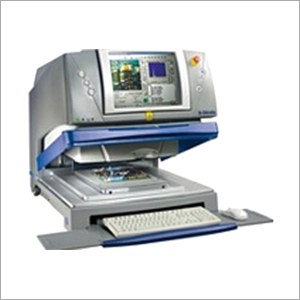

Product Code : X Strata 980
Product Description

Gold or Diamond or Jewellery Testing

Gold or Diamond or Jewellery Testing machine is used to test the availability of hazardous substance which is present in the gold, diamond. This machine is very useful and it gives the exact readings. The machine is very easy to operate and also easy to maintain. Gold or Diamond or Jewellery testing machine has a screen, keyboard which is comfortable to operate. Gold or Diamond or Jewellery testing machine is available at affordable price in the market.



X-Strata980: Combines a high power X-ray tube and high resolution detector to deliver low limits of detection and thin coating analysis.

Specifications

X-ray excitation : 100W (50kV and 2mA) micro-focus tungsten anode tube
Detector: 25mm2 PIN detector with Peltier cooling
Filters/Collimators : Up to 4 primary filters Up to 4 collimators (0.1, 0.2, 0.3, 1.27mm Ø)
Digital Pulse Processing: 4096 CH digital multi-channel analyzer Automatic signal processing including dead time correction and pulse pile up rejection
Computer/Display/OS : Celeron, 1.86 GHz, 40 GB HDD, 512Mb RAM, equivalent or better 15"LCD, 1024 x 768, MicrosoftTM XP SP2
Power Supply: 85~130 or 215~265 volts, with frequency range of 47Hz to 63Hz
Working Environment: 50OF (10
OC) to 104OF (40OC) and up to 98% RH, non-condensing
XYZ Travel: 203 x 152 x 216 mm (8 x 6 x 8.5") fully programmable

Benefits X-STRATA-980



  • Simultaneous multi-layer coating thickness and/or composition analysis
  • Rapid analysis of hazardous substances (RoHS, ELV, WEEE, Pb in toys and children's products)
  • Alloy identification and chemistry analysis
  • Non destructive gold and precious metals karat assay
  • Detection of counterfeit electronics parts
  • Multi-element plating solution analysis
  • Giant chamber for the analysis of large samples
